The Eleventh Annual Interactive Music Conference
PROJECT BAR-B-Q 2006
brainstorming graphic

Group Report: A Consumer-friendly Quantifiable Metric for Audio Systems


Participants: A.K.A. "Not Yet Rated"

David Roach, Optimal Sound

Noel Cross, Microsoft
Marcus Ryle, Line 6 Whit Hutson, IDT
Devon Worrell, Intel Jeff Skillen, Gibson
Tom White, MMA Gary Johnson, SMSC


Overview

Audio is often viewed as a confusing, complicated secondary benefit in the home theater environment when compared to video. One issue that has contributed to this situation is that the consumer has no objective way to qualify the components they buy either individually, or as part of a system. Every product claims to provide a great listening experience, and the user has little to judge this claim on other than price. This workgroup set out to propose a consumer-friendly quantifiable metric for audio systems that can help provide a great listening experience for the user, as well as generate market growth through increased awareness of the value of quality components.


Current State

With most areas of consumable technology, the marketplace has settled on simple, top-level metrics that help guide the consumer through levels of relative performance. This is often a single metric that is typically inadequate for the educated consumer, and is even arguably a potential source of misguidance, but its overall value to the uninformed consumer is undeniable: When shopping for a digital camera, the pixel count becomes the main guide. For a computer, gigahertz is put up for measure until recently; now it is the number of cores. The value for the consumer is achieved whether they understand the metric or not, simply because a common metric exists that can provide a relative scale between products. A camera with six mega-pixels is understood to be better than one with three, and the non-technical consumer can make a reasonably informed choice.

With audio products, no “primary” metric exists. In general, audio products at any price point claim to provide “excellent” audio quality, without any clear way for the consumer to quantify what this means (other than price, and possibly size). Some audio measurement terms (such as watts) are used to quantify some components, but they are often misused (no reference to distortion, for example) and fail to provide any merit in characterizing the entire audio system.


The Opportunity

In general, when a consumer is given a choice to purchase a superior experience, they are likely to choose it (within their price range). If a single metric existed that enabled consumers to compare the relative merits of audio gear, then the consumer would likely spend at the higher range of their price band and would benefit from a superior audio experience. To do this, the entire signal chain must be taken into account in order to derive a single composite score that can represent the quality of the entire audio system for the user. This system would also provide the benefit of identifying which components are the weakest link within the scoring system, which would guide the consumer to their next component for improved audio performance. This workgroup report will attempt to provide an example of how such a system could be implemented.


The Solution

The recommendation for the solution is a tool which can present the user a simple score that represents the lowest value in the signal chain. This tool can be in the form of a web tool or an application downloaded from a manufacturer’s website. Manufactures may find this tool useful for informing customers about potential problems with audio quality on a system and provide options for upgrading to a better solution.

The Windows Vista operating system includes a new control panel called the “Performance Information and Tools”. This control panel gives customers a simple score called the Windows Experience Index which is calibrated from the components included in a computer system. It should be possible to extend this to provide an end-to-end rating of the entire audio signal chain.

To determine the score, we identified six categories of audio elements which can be combined to provide a composite score for the audio system as a whole. We further dissected each category to determine the critical factors for that category. A table containing these categories is included at the end of this report.

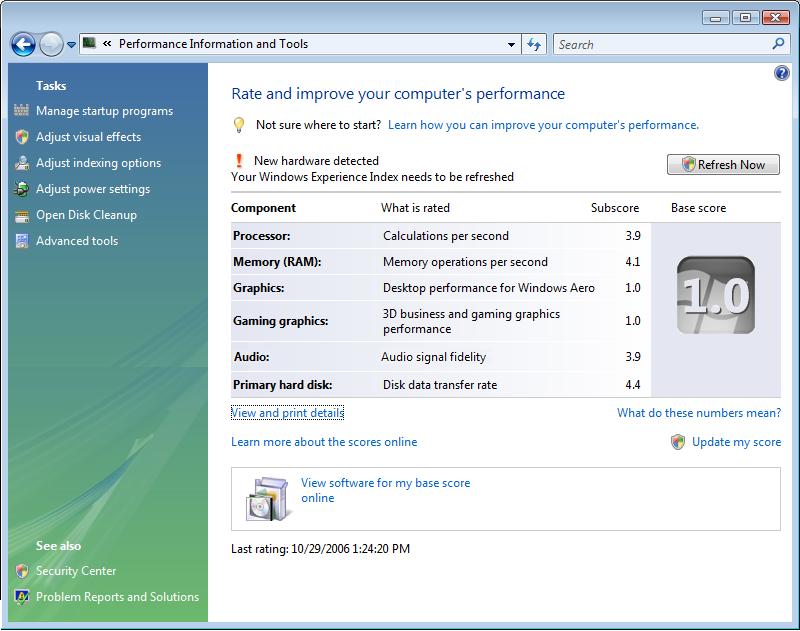

Performance Information and Tools:

Above is an illustration of how an aggregate score for end-to-end audio performance could be visualized in the performance control panel.

When selecting the “Refresh now” button or the “Update my score” link, a dialog will be displayed indicating that the system is being profiled.

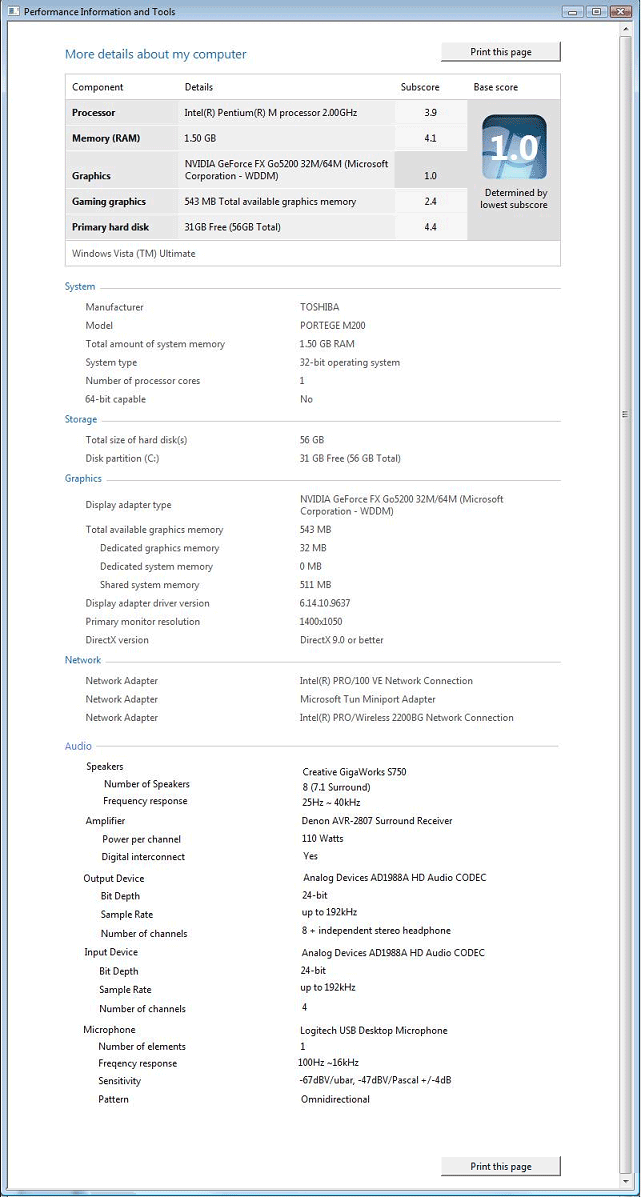

After the results are calculated, the user can selection the “View and print details” link which might look like this depending on how much information is needed for the typical user.

By selecting the “Learn more about the scores online” link and the “View software for my base score” link, the user can be offered products that can help improve the quality of the audio subsystem or products that are at the same level as the rest of the components in the system. There is also the opportunity to use the metadata to influence content delivery options, allowing higher quality content to be delivered to systems capable of taking advantage of it.

It may make sense to involve an independent and recognized testing body. Adding the logo of the testing body (i.e. THX) to the UI would give credibility to the results of the test.


Identify your Speakers

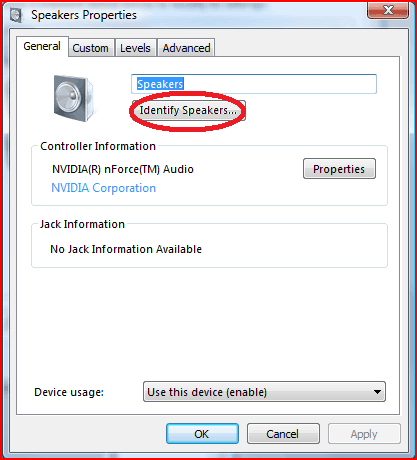

One of the hardest parts of profiling a playback system is identifying the speakers. It is crucial to get this information to have an accurate analysis of the user’s system. Here are screenshots of how this may look in Windows.

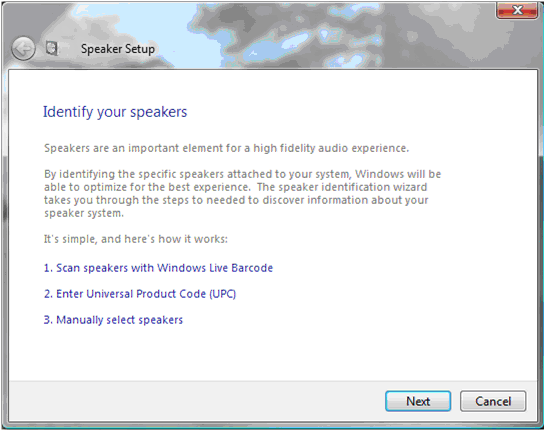

Initial screen of speaker identification wizard:

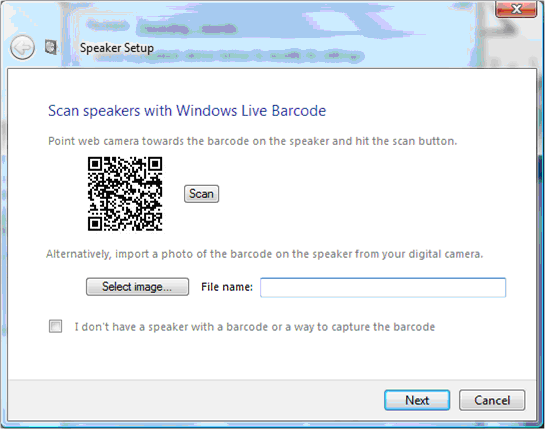

Identify speakers via Windows Live Barcode:

See https://barcode.ideas.live.com/ for more information on the use of the Windows Live Barcode.

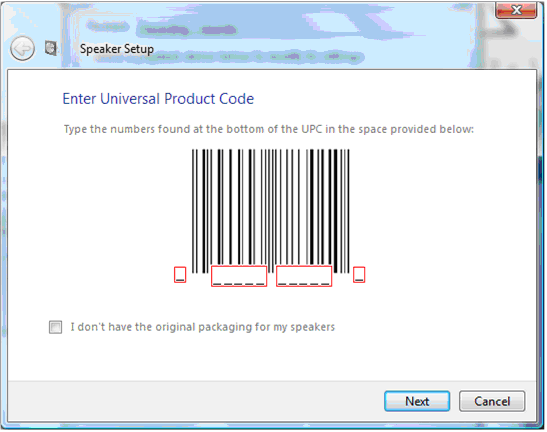

Identify speakers via Universal Product Code:

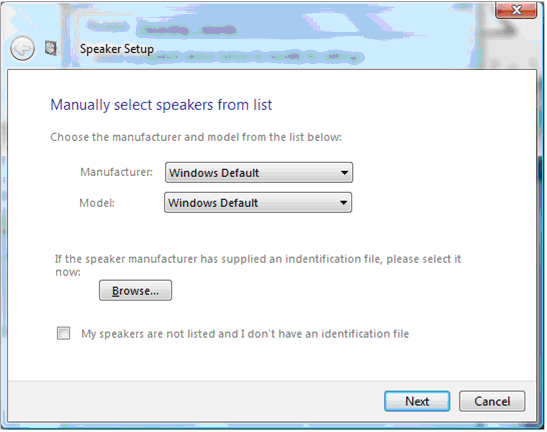

Identify speakers manually by selecting from list or providing identification file:

The file provided by the vendor would be similar information to what is included in the Live Barcode. This information would probably be encoded using XML with a well-formed schema for speaker characteristics.

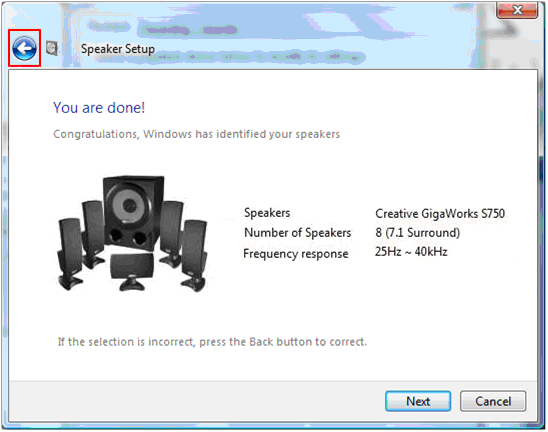

Final page of the speaker identification wizard:

The icons provided would be used in places where speakers are displayed in the user interface. The metadata about the speakers will be input into the calibration process performed in the “Performance Information and Tools” control panel.

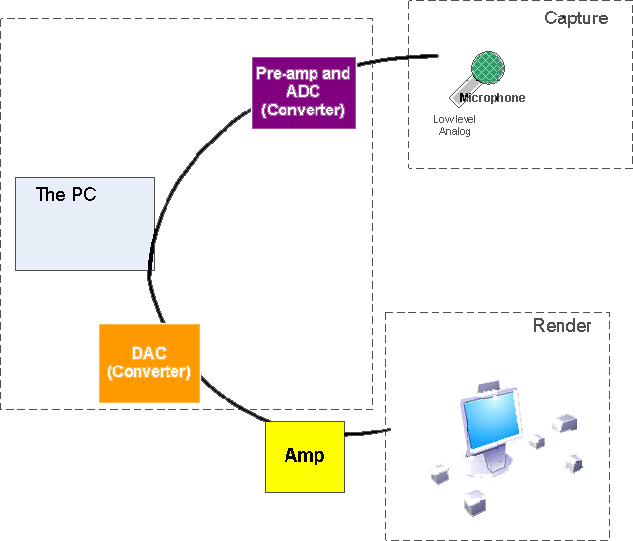

The Six Rating Categories of the Audio Signal Chain:

Each of the categories has multiple audio parameters which can be evaluated in some way or another and converted to a 1-to-5 scale of ratings. Some parameters, such as number of speakers, or even dynamic range, can be converted easily into a 1-to-5 scale. Other parameters may be more difficult to convert to a 1-to-5 scale. The table below shows each category of device in the audio chain, with color coding to indicate the difficulty of acquiring or assessing each parameter. The more difficult parameters are shown in red, while parameters shown in green should be much easier.


Node Type



How easy to convert to simple metric? (green is easy, red is most difficult)

Why

Render/Speakers




Discoverability and/or Identification



USB all-in-one speaker systems can be discovered and should receive a higher mark. Other speakers can be identified from the UPC barcode, or by having the user key in one or more parameters



Characterized in public database?



A public database would probably be the most useful way to establish relative speaker ratings. Still a lot of work to do here.



# of speakers



More than two speakers is useful only when the listener has content intended for multi-speaker playback. If multiple speakers are used, they should be calibrated or corrected for the listenign environment, and this taken into account for the ratings.



Distortion



A simple formula should suffice to convert distortion specs to a simple relative numeric metric



Frequency Response



Might be possible to roughly approximate using room correction algorithms



size of speakers



Larger speakers usually have better low-frequency response.



SPL/Sensitivity at specified distance and stimulus



Sensitivity varies widely depending on the speaker's efficiency. This must be coupled with amplifier power to derive a useful metric.



Presence of subwoofer (and brand/UPC if applicable)



A subwoofer ensures low frequency response in the presence of small satellite speakers, and well as assuring that LFE soundtracks play accurately. Ideally the subwoofer should be designed to complement the other speakers in the system, or use bass management to control the response.



Other characteristics such as impedance and amp matching(?)



Systems that combine amplifier and speaker in a well-designed combination should get a higher rating.  It will be difficult to identify a rating for systems put together on an ad-hoc basis.



Amp/Receiver




Discoverability and/or Identification



USB all-in-one speaker systems with built-in amplifiers can be discovered and should receive a higher mark. Other speakers can be identified from the UPC barcode, or by having the user key in one or more parameters



Characterized in public database?



A public database would probably be the most useful way to establish relative amplifier ratings. Still a lot of work to do here.



Watts RMS @0.1% @ 1 kHz continuous tone



For each channel, a consistent measurement technique for watts must be employed to allow useful comparisons.  The measurement technique (peak watts, RMS watts, etc) must be clearly specified, as must the frequency and timbre of the test tone and the distortion point used for the measurement.



Frequency response



Most amplifiers and receivers have a reasonable frequency response, so this is very seldom the limiting factor.



# of channels



For this metric, the number of channels should meet or exceed the number of speakers.



Type of interconnect



Digital lossless interconnects always get the highest score. For analog connections, cable and connector integrity also becomes a factor



Analog input sensitivity



PC audio systems typically provide 1VRMS or less, while CE systems usually expect a full range analog input signal of 2.0 VRMS or higher. Systems with input sensitivity which correctly matches an analog source should receive higher ratings.



Volume control, and whether it is discoverable and remotely controllable



Cascaded volume controls are big usability problem in any audio system. Proper level matching is critical for the best listening experience. Improper level matching can affect many of the other system metrics, especially if one cascaded volume control in the chain is turned down low, and a later cascaded volume control is cranked way up to compensate. Ideally all volume controls should be integrated and synchronized, and systems built this way should receive a better score. For example, USB speaker systems or receivers with a HID-based volume control should get a high mark for this node.



Peak limiter, night-time mode/compressor, ability to defeat or control



This is important to prevent clipping distortion due to misaligned signal chains, and will help protect speakers from overloads.



Render Output Device / DAC (at the PC's jack, or at the point where it connects to the next subsystem)




Time alignment with video



This is important throughout the signal chain, and has a very real impact on user experience



Overall latency



This can be a negative for interactive voice communications and for real-time applications such as video games.



Transport type (analog, digital, wireless, systems using lossy compression, etc)



Digital lossless interconnects always get the highest score. For analog connections, cable and connector integrity also becomes a factor



Analog characteristics (refer to Vista WLP requirements). These measurements include Dynamic Range, Total Harmonic Distortion, and Frequency Response



For Windows-based systems, once Microsoft's fidelity requirements are completely tested, a simple algorithm can be used to convert these results to a simple relative numeric metric.



Extra points for metrics which exceed logo



Systems which rate higher than Microsoft requirements get extra credit



Resolution (bit depth/sample rate/lossy compression/perceptual coding)



This is relatively straightforward to convert to a user-understandable metric



# of channels



For this metric, the number of discrete channels should meet or exceed the number of speakers.



# and type of jacks



3.5 mm analog jacks get a lower rating than RCA or 1/4" phone jacks. Coaxial RCA SPDIF jacks get a lower rating than optical jacks.



Additional processing capability



Hard to assign absolute metrics.



Capture Input Device / ADC




Time alignment with video



This is important throughout the signal chain, and has a very real impact on user experience



Overall latency



This can be a negative for interactive voice communications and for real-time applications such as video games.



Transport type (analog, digital, wireless, systems using lossy compression, etc)



Digital lossless interconnects always get the highest score. For analog connections, cable and connector integrity also becomes a factor



Analog characteristics (refer to Vista WLP requirements).



For Windows-based systems, once Microsoft's fidelity requirements are completely tested, a simple algorithm can be used to convert these results to a simple relative numeric metric.



Extra points for metrics which exceed logo



Systems which rate higher than Microsoft requirements get extra credit



Resolution (bit depth/sample rate/lossy compression/perceptual coding)



This is relatively straightforward to convert to a user-understandable metric



# of channels



Most systems require only 2 channels of analog line input. However, home theatre systems may require 5.1 or 7.1 inputs, while systems in a music studio will often use as many inputs as are available.



# and type of jacks



3.5 mm analog jacks get a lower rating than RCA or 1/4" phone jacks. Coaxial RCA SPDIF jacks get a lower rating than optical jacks.



Additional processing capability



Hard to assign absolute metrics.



Mic Preamp Gain



This is dependent on the microphone that is selected. Systems with properly calibrated microphones which expose no user gain control should receive the highest marks.



Line-in preamp gain



If additional gain is available on a line input, points are counted off because this ultimately will cause distortion when the user cranks this control up.



Mic

/ Capture




Discoverability and/or Identification



USB microphones and headsets can be discovered and should receive a higher mark. Microphone inputs intended to work with unidentified microphones should receive lower ratings due to the fact that the end user is in most cases incapable of setting the microphone levels properly.



Characterized in public database?



A public database would probably be the most useful way to establish relative microphone ratings. Still a lot of work to do here.



In-air measurements



A standardized methodology does not currently exist, but is a critical need for unified real-time communications applications. Ideally in-air microphone testing would manifest as extensions to the audio fidelity logo tests for Windows systems.



# of mics



Beamforming microphone arrays and conference phones perform better with multiple microphones.



Frequency Response



This could be determined by in-air testing. The frequency of embedded microphones is almost always affected by the mounting techniques and location.



Distortion



Microphones should be free of distortion. In-air testing should be capable of measuring this parameter



Sensitivity and impedance



This is an issue with unidentified microphones, and can cause considerable variation in resultant gain settings.



Microphone bias power



A noisy microphone bias supply can significantly degrade the microphone output quality. However, this is often difficult to measure.



Pattern



Omnidirectional and cardioid are the most typical mic patterns. The choice of pattern is often dependent on how the microphone is used. It is also possible to impact the microphone pattern by mounting a microphone improperly or with insufficient acoustical porting.



Integrated or external



Well-implemented integrated microphones should receive the highest marks, because they can be setup and used reliably. External USB or 1394 microphones can also receive high marks if well-implemented



Close Talking



A close-talking microphone on a headset will almost always provide a clearer speech signal than a microphone at a distance, and therefore should have more points awarded.



System




Low Acoustic Emissions



PCs with excessive acoustic emissions can drown out audio signals coming from the speakers or captured by the microphones. Systems with lower acoustic emissions should get a higher rating. These emissions can be measured with a simple sound pressure level meter, though no formal industry spec is available for the PC industry.



Sufficient CPU power for native processing



This is necessary to avoid glitches and dropouts when host-based digital signal processing is in use.
