The Sixteenth Annual Interactive Audio Conference
PROJECT BAR-B-Q 2011
BBQ Group Report: Making Spatialization Work Within Constraints of New Form Factors

Participants: A.K.A. "Spatial Ed's Honeywagon Roadshow"

David Rowe, Neversoft

Phil Brown, Dolby
Will Wolcott, Dolby Brian Cullen, UOIT
Facilitator: David Battino, Batmosphere

  PDF download the PDF

Problem

Current spatial audio authoring and delivery systems are not always aware of the rendering environment, so the content is not always rendered in a way that preserves the artistic intent.


Goal

A scalable audio spatialization system that preserves the original artistic intent. This system should support authoring, transmission and rendering of audio that adapts to the environment, the listener(s), and the hardware.


Prior Art

  • VBAP
  • Ambisonics
  • iXMF
  • 3DAA
  • AudioStage

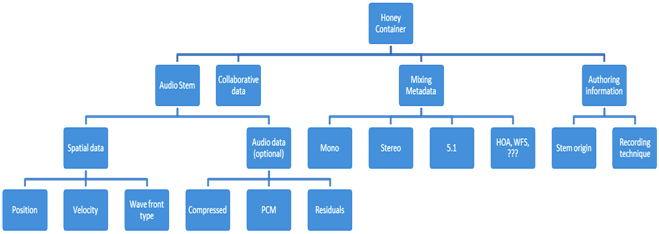

Honey File Format

BBQ 2011 image 3

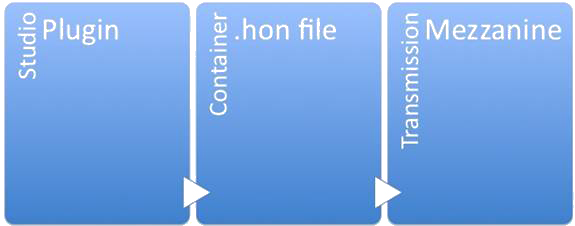

Authoring Process

BBQ 2011 image 4

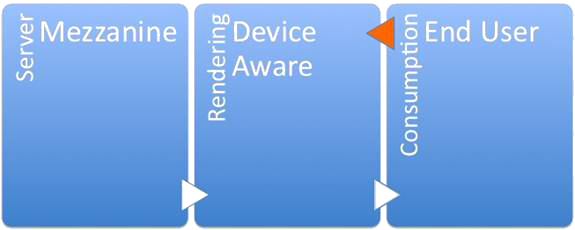

Rendering Process

BBQ 2011 image 5





Server to Renderer

BBQ 2011 image 6





Use Cases



Music video authoring “Linear Larry”

2011

  • Stems/5.1/stereo-matrix/mono/headphones

2016

  • Stems & Metadata à *.hon file
  • YouTube queries environment and renders as appropriate
  • Small speaker, full-range speaker, number of speakers, headphone, dynamic compression



Game Authoring “Interactive Irving”
  • Environments, objects, distance, vector info
  • Look at iXMF, add querying
  • iXMF Hardware Platform
  • Audio in app (trigger)
  • Interactive (eg, voice, game variables)



Voice Communications “Mobile Molly”

Conference call with aggregated phones (M phones, N users)

  • Server aggregates input, creates .hon stream
  • Each device renders appropriately
  • Language translation support



Cinema “Zack Zimmer”

  • Awareness of audience
  • 3D movies (authoring)
  • Earbuds & subwoofers
  • Transmit sound effects like whispery voices to individual phones in the audience



Musician “Performance Pete”

  • In ear monitors for stage
  • Stream in .HON format (local and remote)
  • Fans can isolate instruments, e.g. guitar
  • No bad seats
  • Stage vs. audience perspective



Tablet educational app “Sally Student”

  • Feel like you are in the lecture hall
  • Distance education – send voice back and forth
  • Language translation



Conclusion

BBQ 2011 image 7
